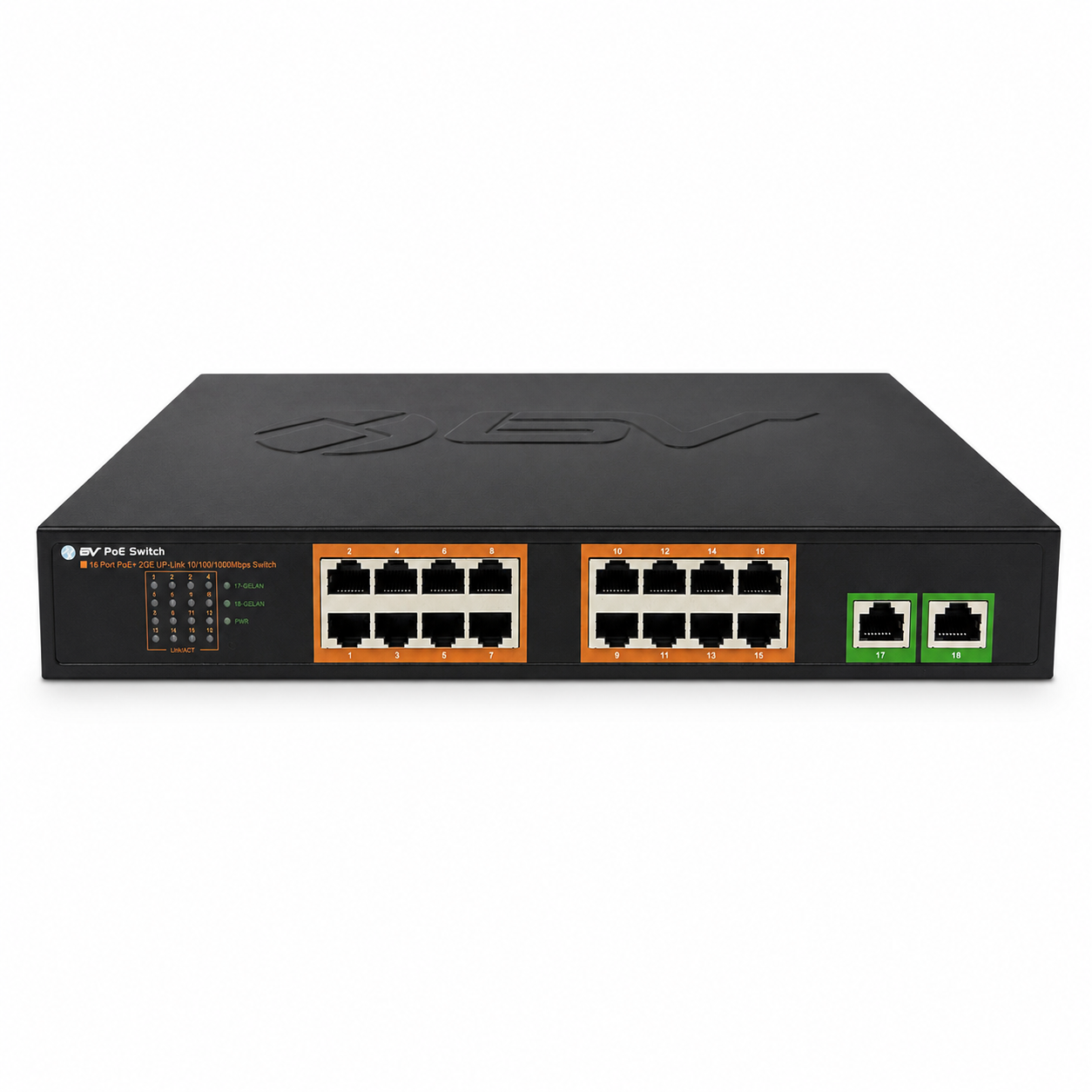

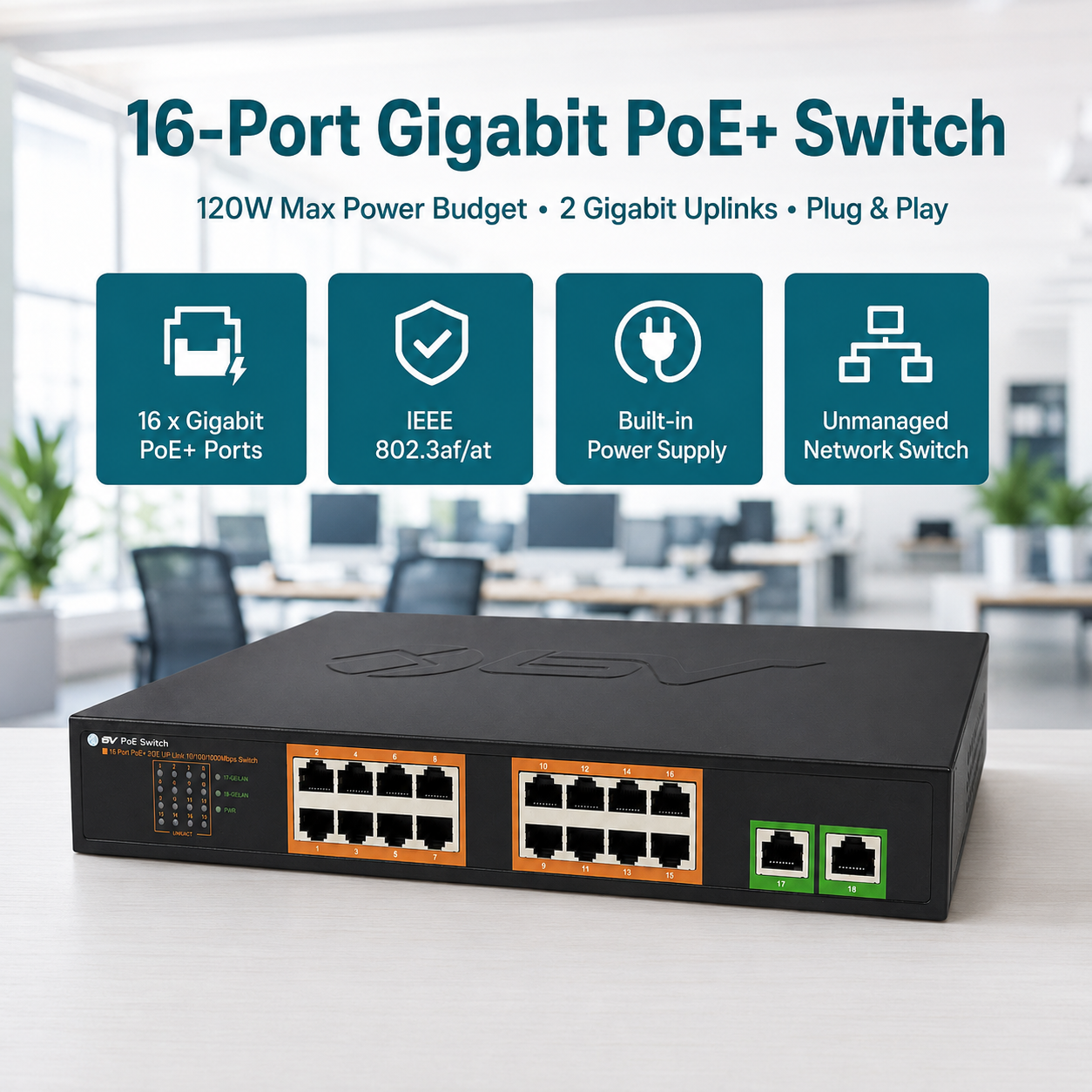

BV-Tech 16-Port Gigabit PoE Switch (POE-SW1602G) with 2 Gigabit Uplink Ports, 120W PoE Budget, 1U Rackmount
$119.99
$119.99
$159.99
Shipping calculated at checkout.
Description

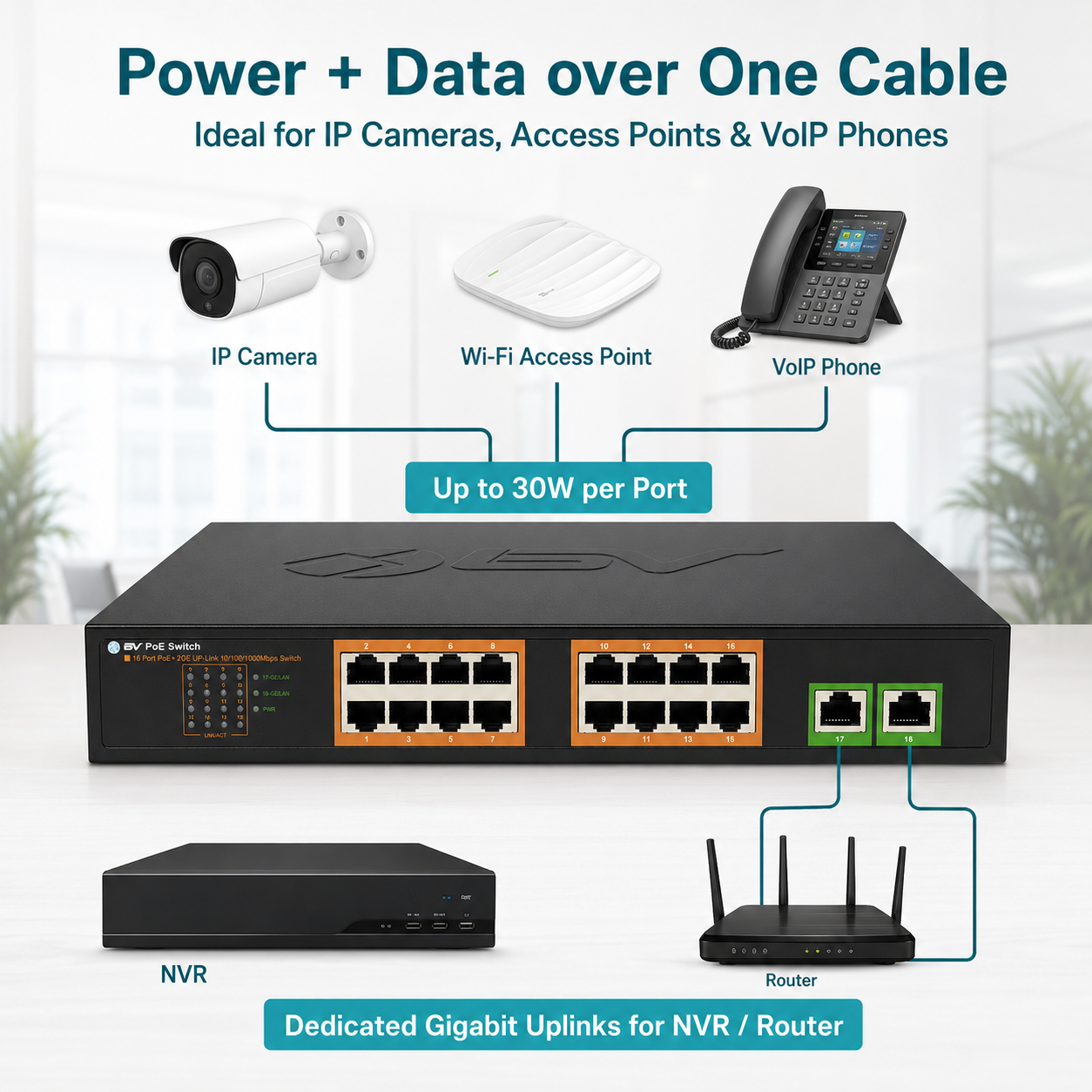

The BV-Tech POE-SW1602G is an unmanaged 16-port Gigabit PoE switch featuring two additional Gigabit uplink ports, providing seamless network expansion for small businesses and workgroups. This plug-and-play switch simplifies deployments by delivering power and data over a single Ethernet cable, eliminating the need for dedicated outlets. Operating with an internal power supply, it complies with IEEE 802.3af/at standards to deliver up to 30W per port across a total PoE power budget of 120W. Equipped with smart auto-detection features and energy-saving green technology, it delivers a secure, cost-effective, and highly efficient network foundation.
Key Features

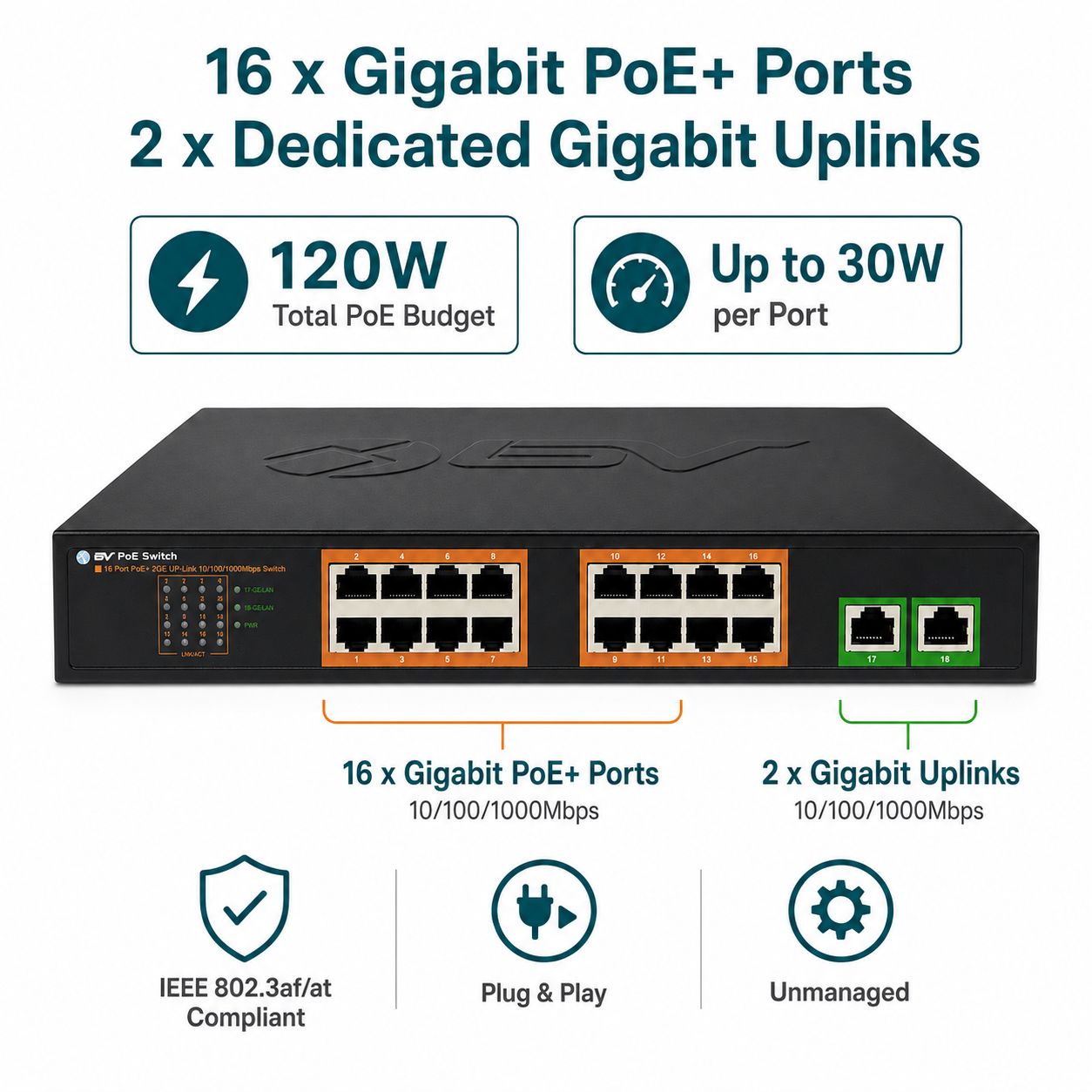

- All-Gigabit Port Architecture: Features 16 auto-MDI/MDI-X 10/100/1000 Mbps RJ-45 PoE copper ports for high-speed terminal connections. It also incorporates two dedicated Gigabit RJ-45 uplink ports (Ports 17–18) to maintain full network throughput. Robust PoE+
- Power Budget: Delivers up to 30W of power per individual port to reliably power high-draw hardware like wireless access points, IP surveillance cameras, and IP phones. The system features a 120W maximum total PoE power budget out of a 150W maximum system consumption.
- Plug-and-Play Simplicity: Offers completely unmanaged, plug-and-play installation with zero configuration required. It routes power and data through a single Ethernet cable , significantly reducing structural cabling needs, deployment times, and setup costs.
- Intelligent Safeguards & PD Detection: Incorporates smart Power Detection (PD) technology to guarantee that only compatible PoE devices receive electrical power. It automatically detects and protects non-standard Ethernet terminals from structural installation damage.
- Eco-Friendly Green Technology: Integrates advanced power-saving green technology. This engineering feature helps networks reduce electrical consumption by up to 83% during operation.

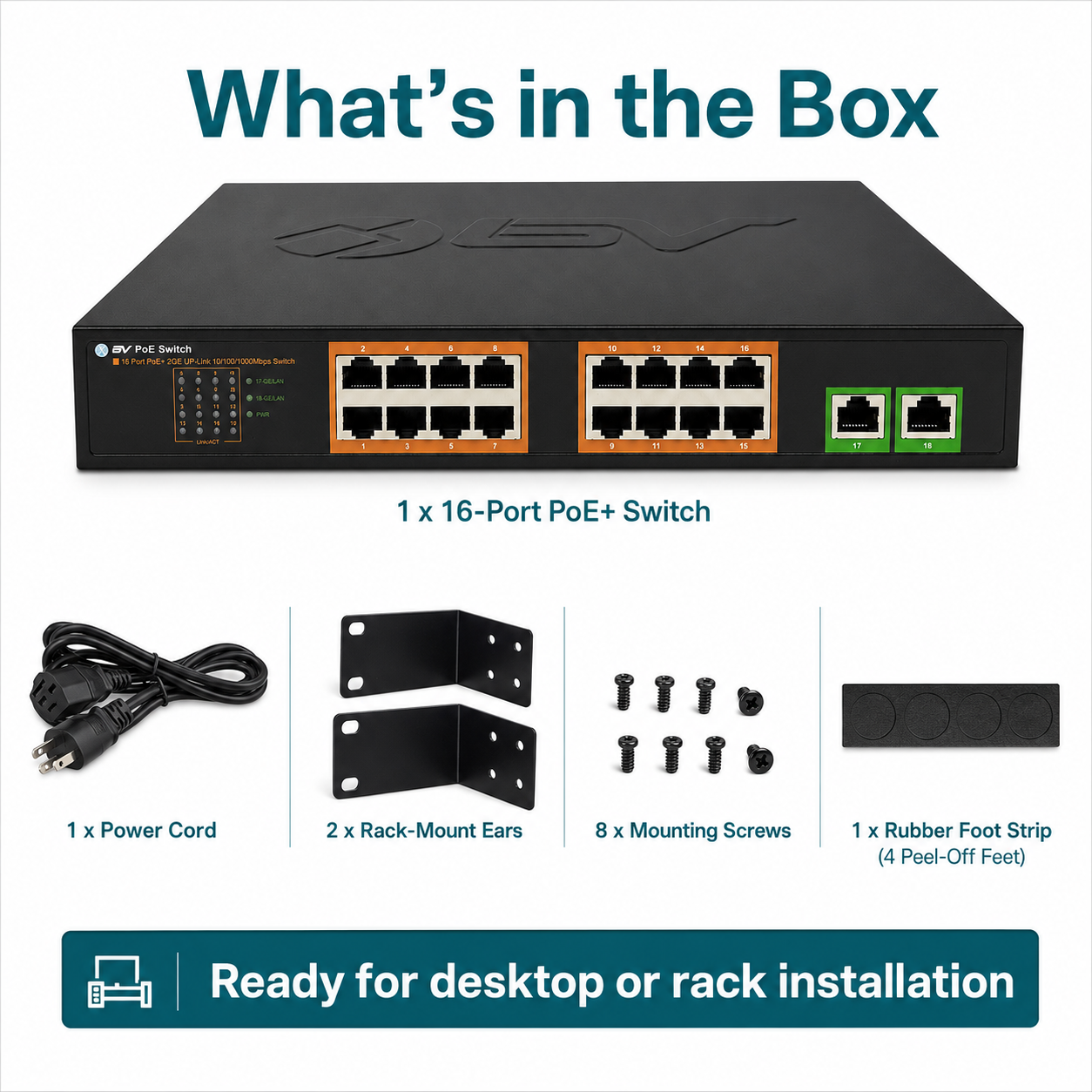

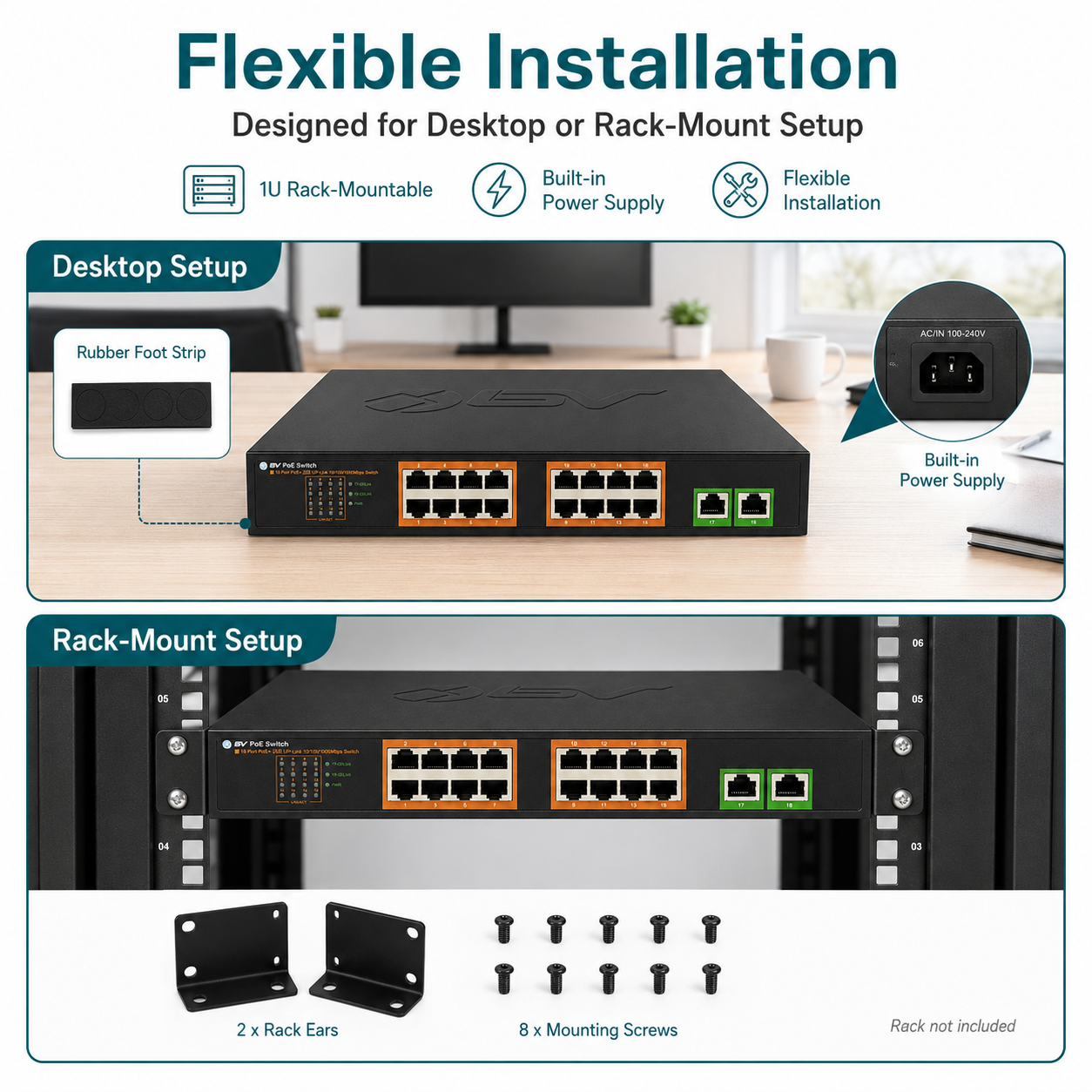

- Rackmountable 1U Form Factor: Features a compact design measuring 300 x 210 x 44 mm that matches standard 1U height rack layouts. The complete package comes shipped with an internal power supply , a power cord , four rubber feet , and two hanging ears for secure installation.
