Description

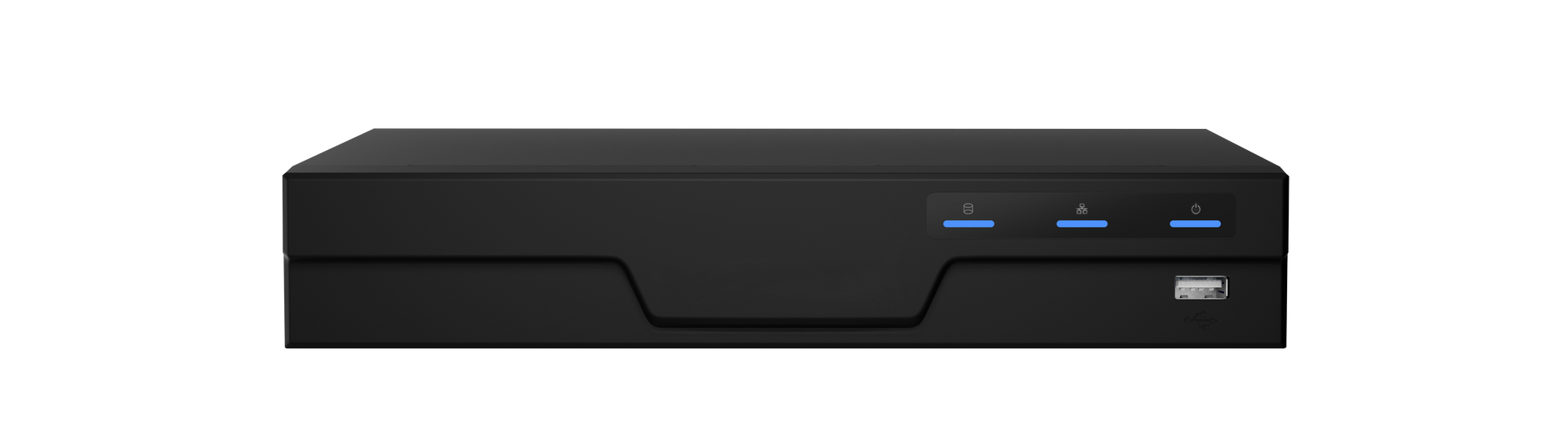

The BSC-N108P is an 8-channel NVR from the Lite Series. It features 8 channels of Power over Ethernet (PoE) and supports IP cameras with resolutions up to 12 MP. This recorder provides a maximum decoding capability of 6 channels at 1080P (30fps) and utilizes H.265+/H.265/H.264+/H.264 compression standards. It offers advanced intelligence capabilities, including AI by recorder for 2 channels of SMD, intrusion, and tripwire , alongside support for AI by camera features such as SMD, intrusion, tripwire, and face capture. The device is NDAA compliant and accommodates robust storage needs by supporting up to a 12TB HDD.
BSC-N108P Specifications:
- Datasheet
- Datasheet (No logos)
- 8-channel IP video input with an 8-channel PoE interface
- Supports IP cameras up to 12 MP
- Maximum decoding capability of 6-ch at 1080p (30 fps)
- Supports H.265+/H.265/H.264+/H.264 and Smart Encoding (H.265; H.264; H.264H; H.264B) formats
- Incoming bandwidth of 80 Mbps and outgoing bandwidth of 60 Mbps
- Simultaneous video output mode featuring HDMI output up to 3840 x 2160 and VGA output up to 1920x1080
- AI by recorder supports SMD, intrusion, and tripwire (2-ch)
- AI by camera supports SMD, intrusion, tripwire, and face capture
- 1 SATA interface supporting up to 12TB capacity
- Total PoE budget of 70W with 25.5W single port capability , utilizing IEEE802.3af/at standards
- NDAA Compliant, FCC certified, and CE certified
