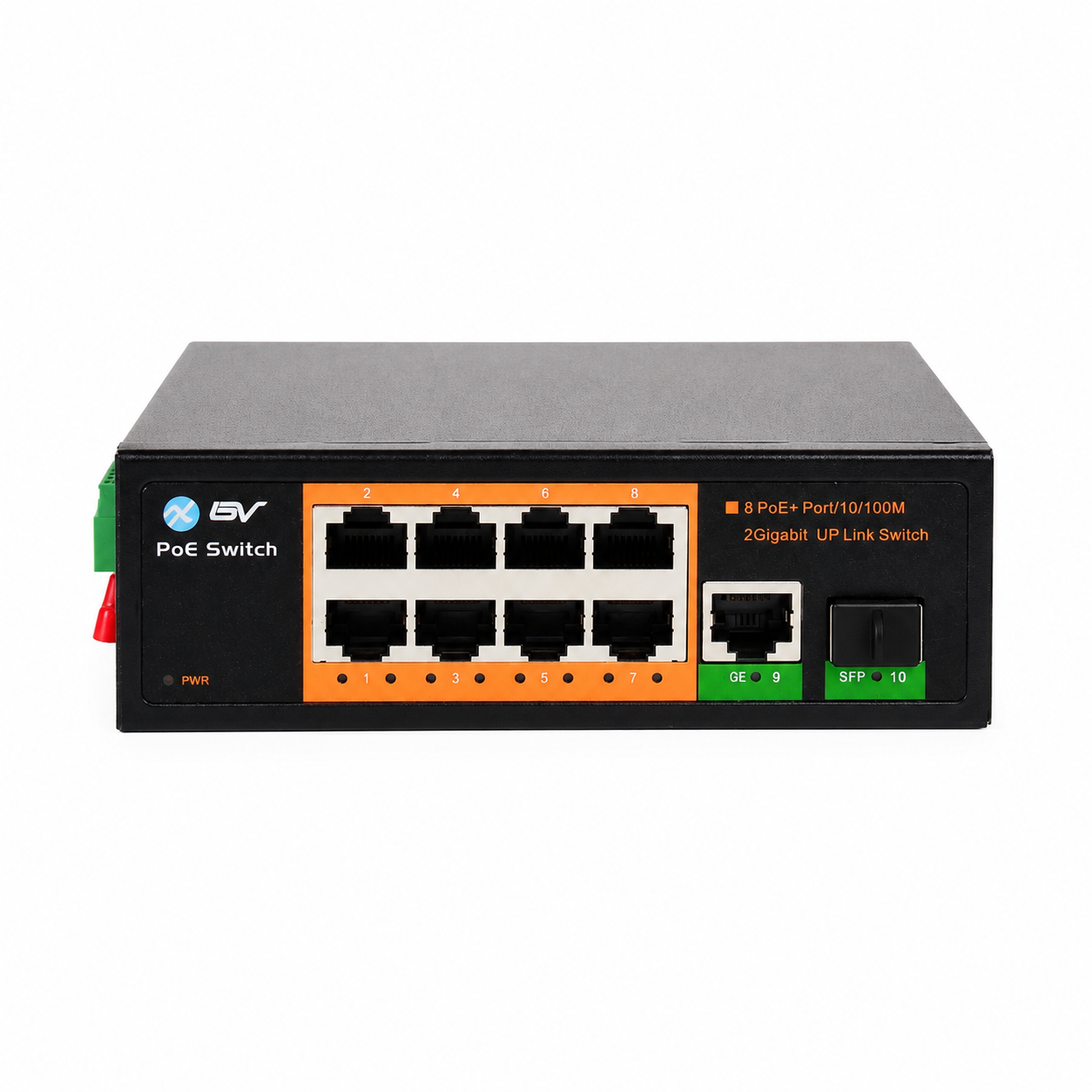

BV-Tech 8-Port Industrial DIN-Rail PoE+ Switch with 1 Gigabit RJ45 & 1 SFP Slot (120W, Plug and Play) | POE-SW811-DIN

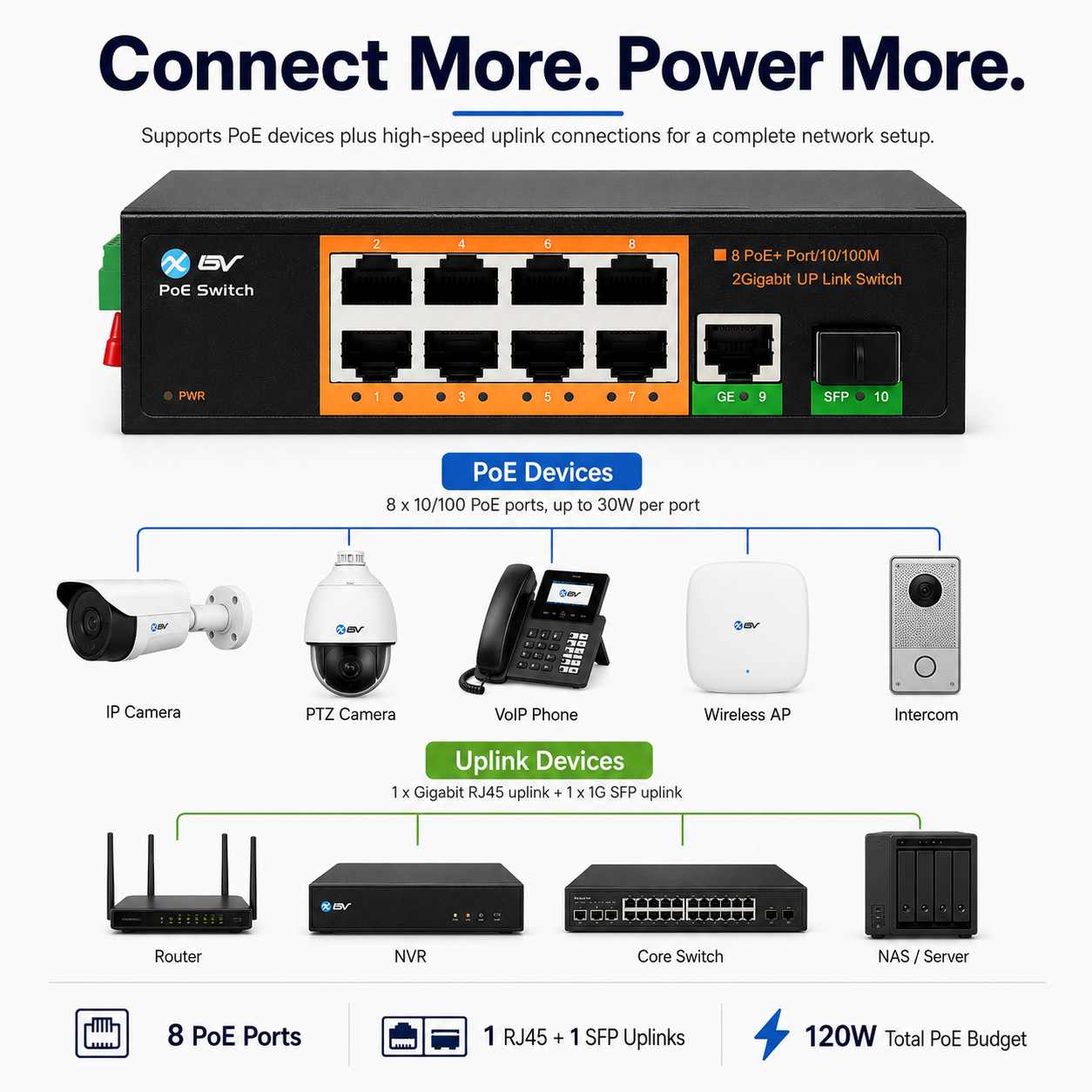

Simplify network deployments in rugged environments with the BV-Tech POE-SW811-DIN Industrial 8-Port PoE+ Switch. Engineered to supply power and data over a single Ethernet cable, this unmanaged switch features 8 Fast Ethernet PoE ports compliant with IEEE 802.3af/at standards. It provides up to 30W per port with a 120W total power budget. Equipped with 1 Gigabit RJ45 uplink port and 1 SFP mini-GBIC slot, it provides flexible connectivity for IP surveillance, wireless access points, and VoIP phones. Designed with a wide operating temperature range and plug-and-play setup for reliable performance.

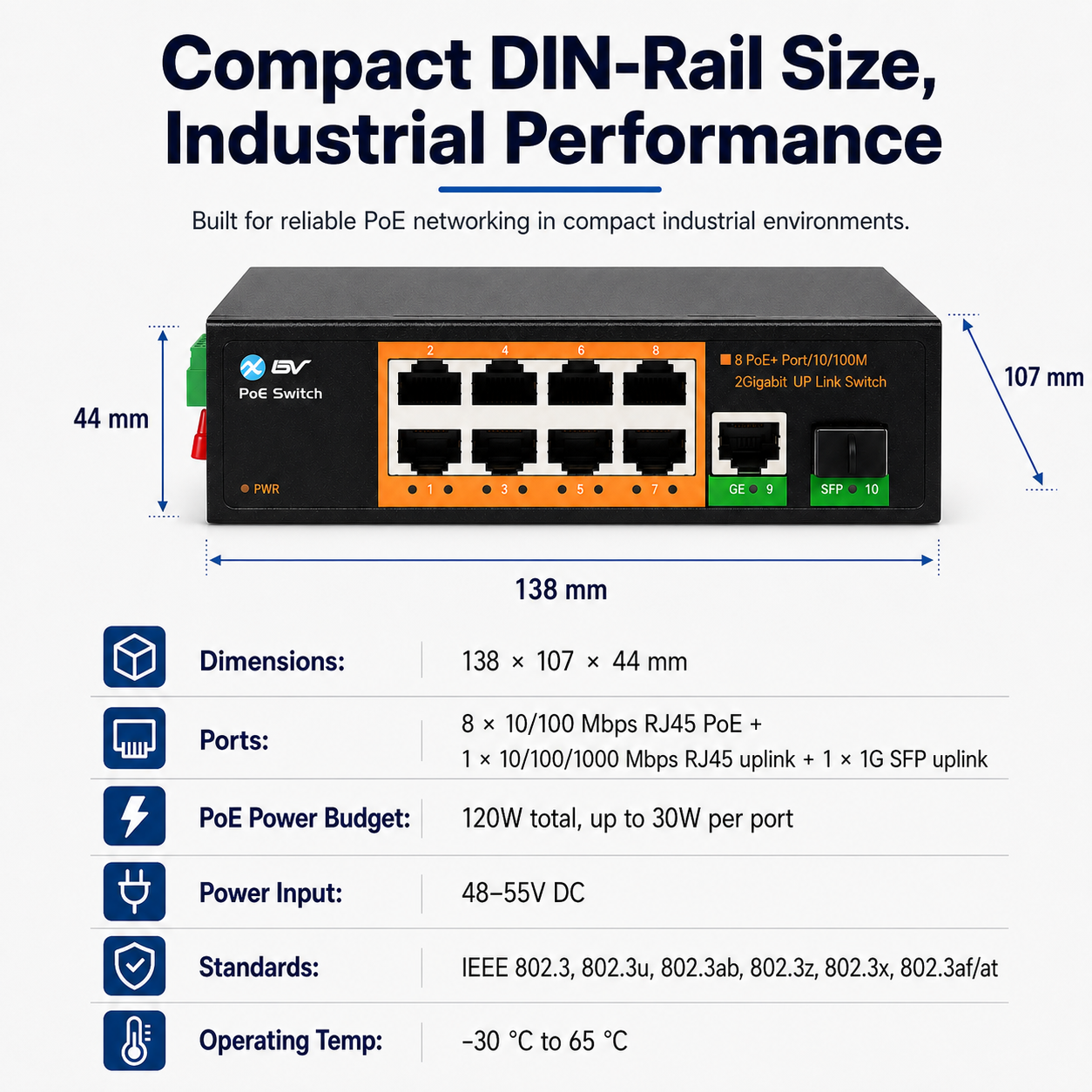

• 8 PoE+ Ports: Supplies up to 30W per port across 8 Auto-MDI/MDI-X 10/100 Mbps RJ45 ports with a total power budget of 120W.

• Dedicated High-Speed Uplinks: Features 1 Gigabit Ethernet RJ45 uplink port (10/100/1000 Mbps) and 1 SFP slot (1000Base-X) for versatile fiber expansion.

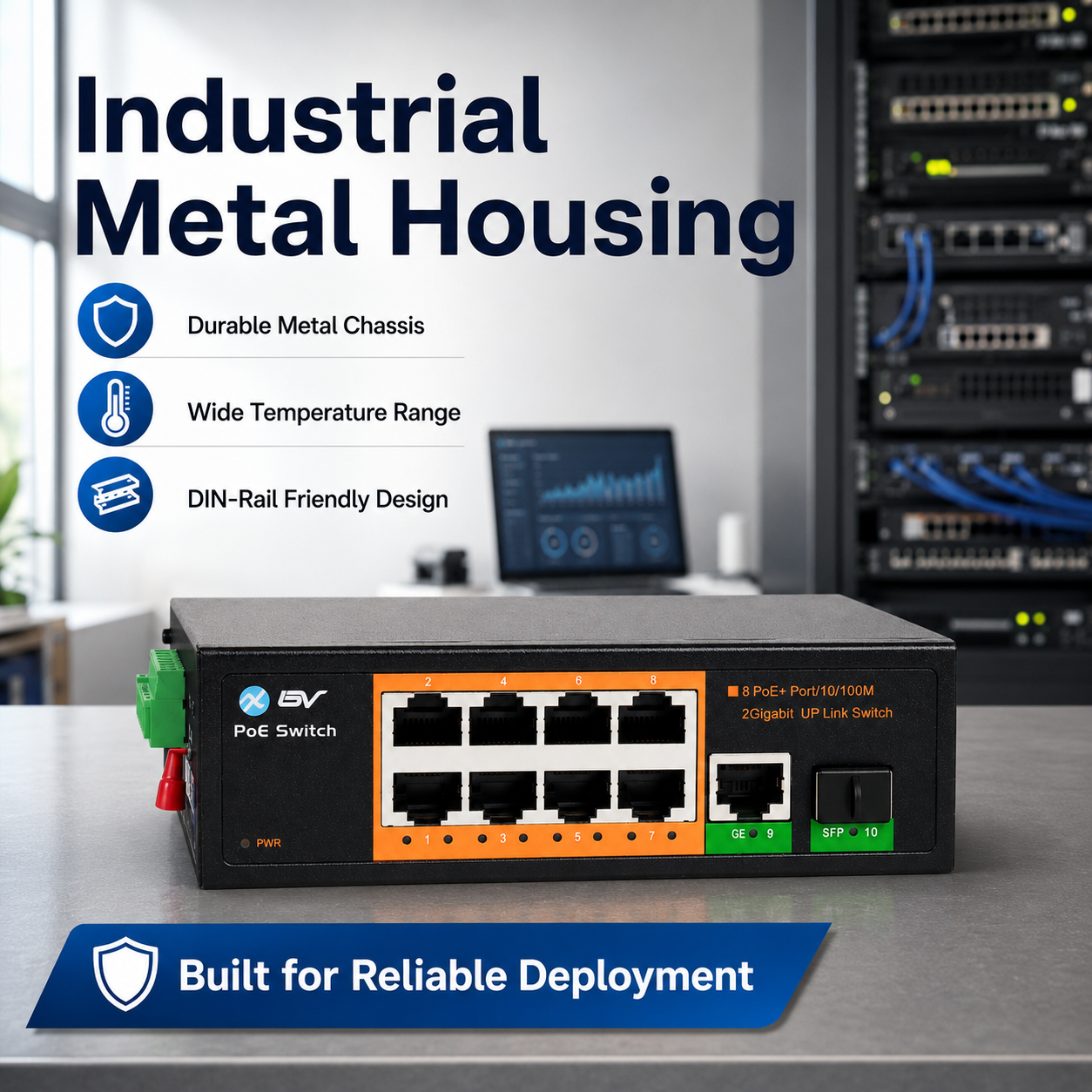

• Industrial & Rugged Design: Engineered for harsh environments with an operating temperature range of -30°C to +65°C (-22°F to +149°F) and 4 kV lightning surge protection.

• IEEE 802.3af/at Compliant: Built-in Power Detection (PD) technology automatically detects connected devices and protects non-standard network terminals.

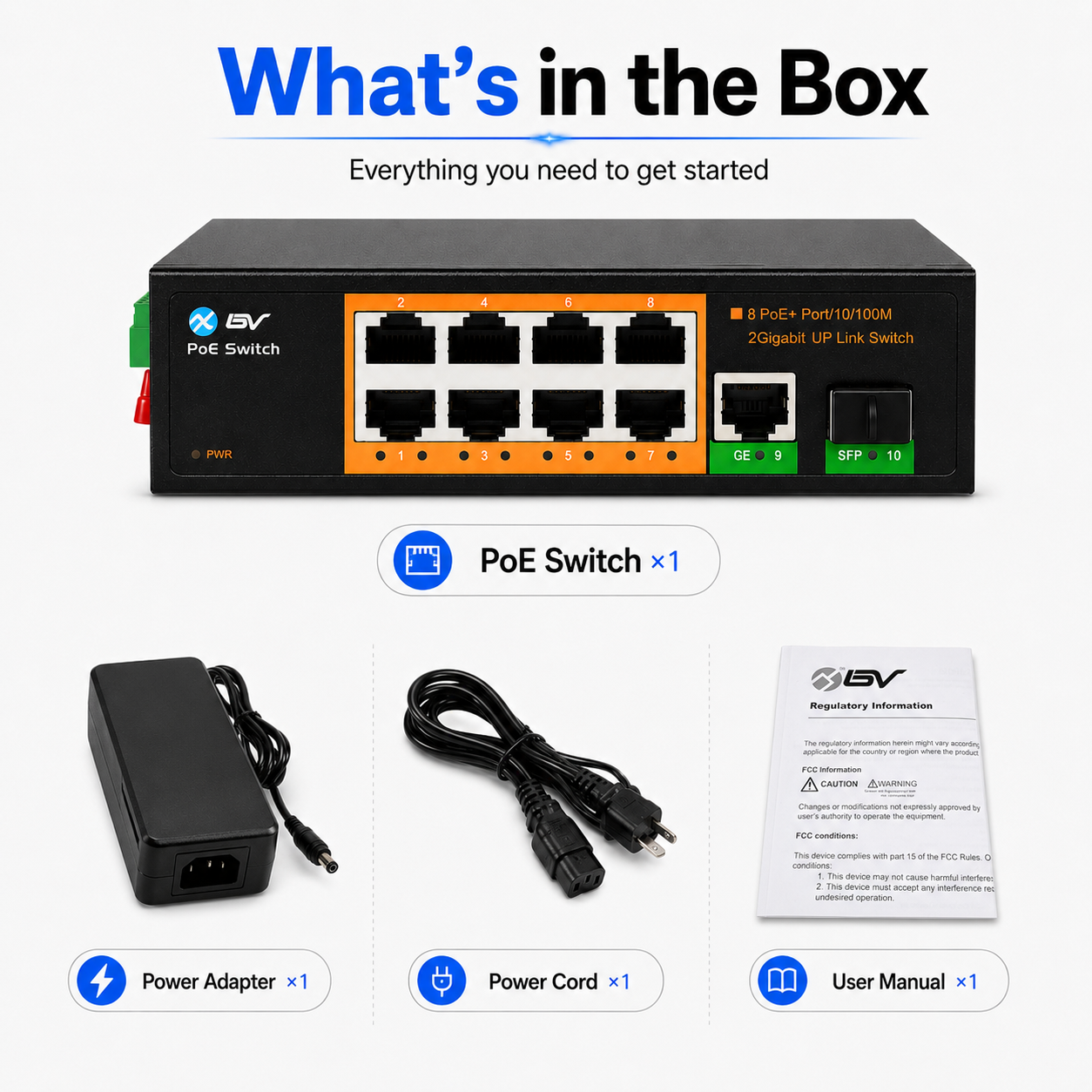

• Plug-and-Play Setup: Unmanaged design requires zero software configuration—simply connect your network cables and included DC power adapter.

Downloads

• Manual
