Description

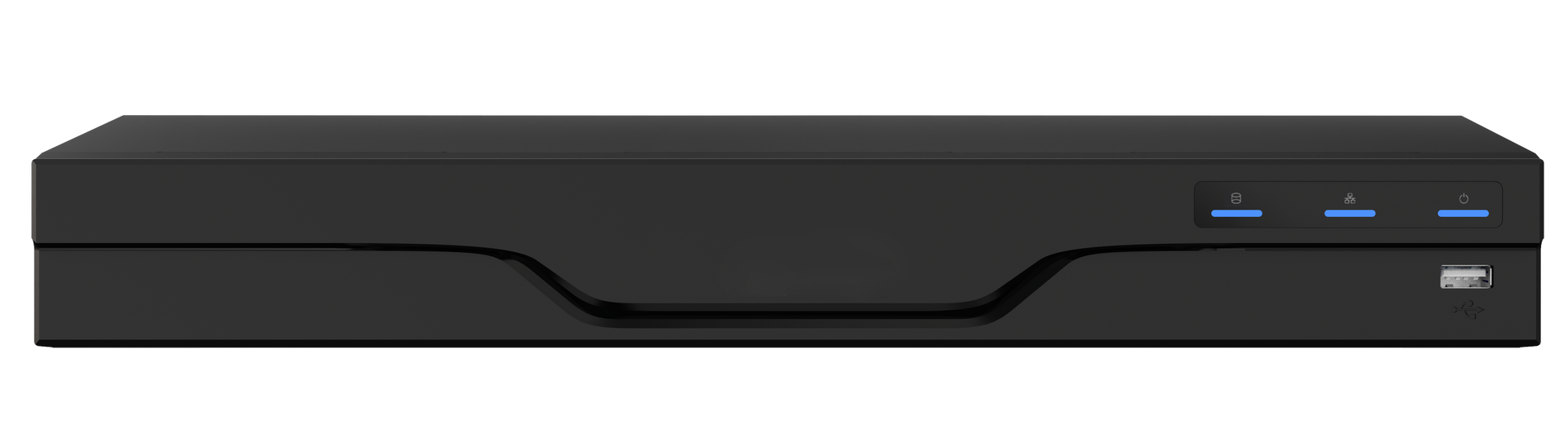

The BSC-N216P is a 16-channel NVR from the Lite Series. It features 16 channels of Power over Ethernet (PoE) and supports two hard drives. The NVR supports IP cameras with resolutions up to 12 MP and offers a maximum decoding capability of 8 channels at 1080p (30fps). It utilizes H.265+/H.265/H.264+/H.264 compression standards to help minimize storage needs. The recorder features advanced intelligence capabilities, including AI by recorder for 4 channels of SMD, intrusion, and tripwire. It also supports AI by camera features such as SMD, intrusion, tripwire, and face capture. The NVR is NDAA compliant.
BSC-N216P 16-Channel Lite Series NVR Specifications:
- Datasheet
- Datasheet (No Logos)
- 16-channel IP video input
- Supports IP cameras up to 12 MP
- Maximum decoding capability of 8-ch at 1080p (30 fps)
- Supports H.265+/H.265/H.264+/H.264 and Smart Encoding (H.265; H.264; H.264H; H.264B) formats
- Incoming bandwidth of 160 Mbps and outgoing bandwidth of 80 Mbps
- Simultaneous video output mode featuring HDMI output up to 3840 x 2160 and VGA output up to 1920x1080
- AI by recorder supports SMD, intrusion, and tripwire (4-ch)
- AI by camera supports SMD, intrusion, tripwire, and face capture
- 1 SATA interface supporting up to 12TB capacity per disk. (Note: While the title states "2 HARD DRIVES NVR" , the specification table lists "1 SATA interface".)
- Total PoE budget of 70W with 25.5W single port capability, utilizing IEEE802.3af/at standards.
- NDAA Compliant , FCC certified, and CE certified
