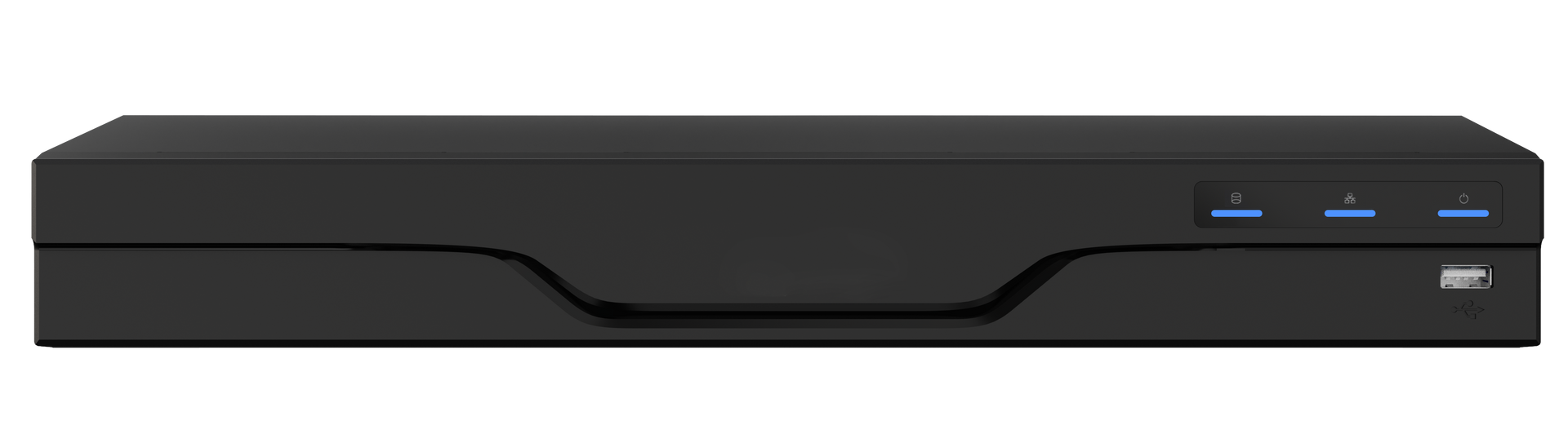

8-Channel Lite Series NVR with Dual HDD Support| BSC-N208P

The BSC-N208P is an 8-channel NVR from the Lite Series, equipped with 8 channels of PoE and support for two hard drives. It supports IP cameras with resolutions up to 12 MP and offers a maximum decoding capability of 6 channels at 1080p (30fps). The recorder utilizes H.265+/H.265/H.264+/H.264 compression to maximize storage efficiency. It features advanced intelligence capabilities, including AI by recorder for 2 channels of SMD, intrusion, and tripwire, as well as AI by camera support for SMD, intrusion, and tripwire. The NVR is NDAA compliant and provides substantial storage capacity supporting two SATA HDDs up to 12 TB each.

BSC-N208P Specifications:

• Datasheet
• Datasheet (No logos)
• 8-channel IP video input with 8 RJ-45 10/100 Mbps self-adaptive PoE interfaces
• Supports IP cameras up to 12 MP
• Maximum decoding capability of 6-ch at 1080p (30 fps)
• Supports H.265+/H.265/H.264+/H.264 and Smart Encoding formats (H.265; H.264; H.264H; H.264B)
• Incoming bandwidth of 80 Mbps and outgoing bandwidth of 60 Mbps
• Simultaneous video output mode with HDMI output up to 3840 x 2160 and VGA output up to 1920x1080
• AI by recorder supports SMD, intrusion, and tripwire (2-ch)
• AI by camera supports SMD, intrusion, tripwire, and face capture
• 2 SATA interfaces, each supporting up to 12TB capacity
• Total PoE budget of 80W with 25.5W single port capability, using IEEE802.3af/at standards
• NDAA Compliant, FCC certified, and CE certified
