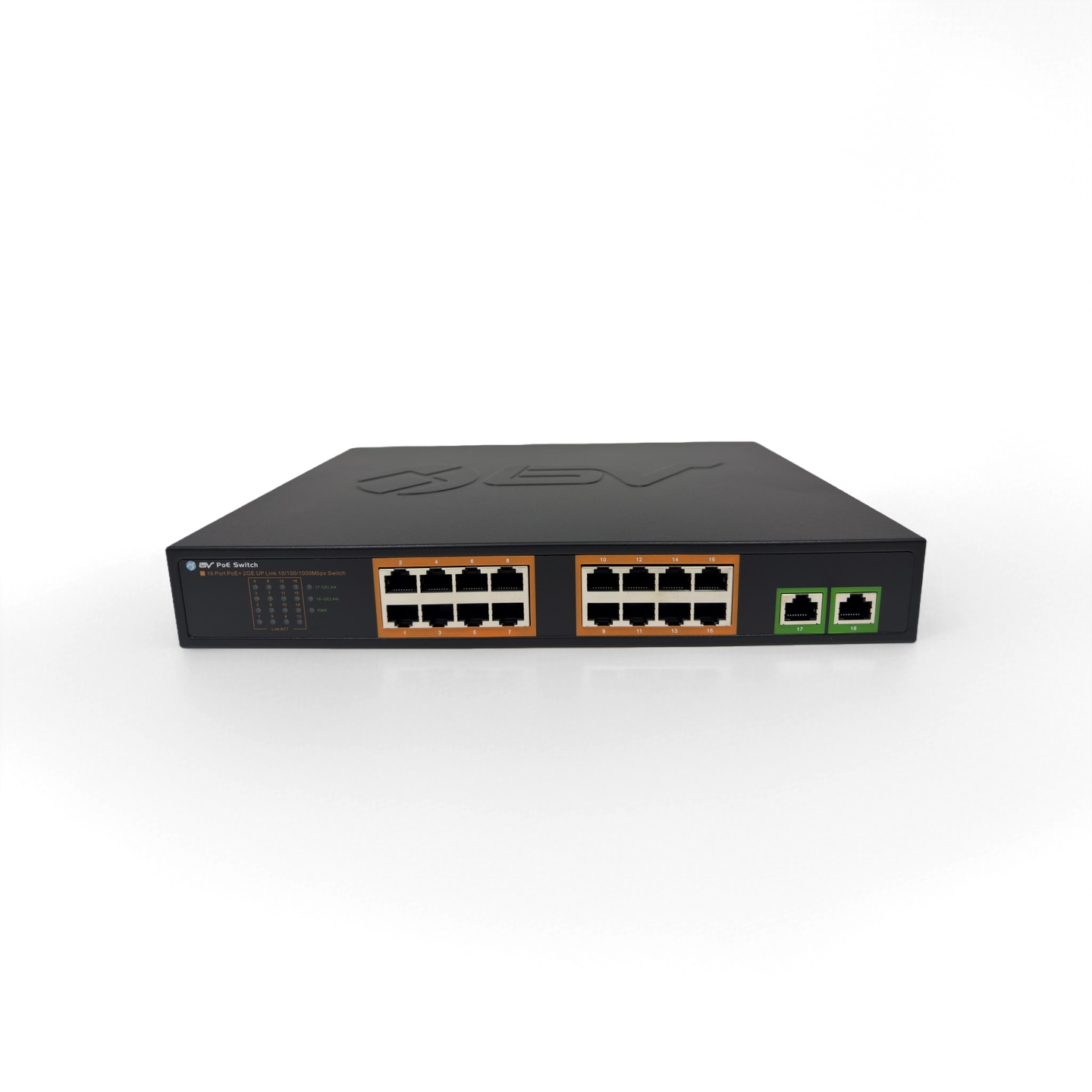

BV-Tech 16-Port Gigabit PoE+ Switch with 2 Gigabit RJ-45 Uplink Ports, 120W PoE Budget, IEEE 802.3af/at | POE-SW1602G

$119.99
$119.99 $159.99
Shipping calculated at checkout.

Description

Upgrade your network with the BV-Tech 16-Port Gigabit PoE+ Switch, designed for small businesses and workgroups that require reliable Power over Ethernet deployment. This plug-and-play PoE switch delivers both data and power over a single Ethernet cable, reducing cabling requirements, simplifying installation, and eliminating the need for additional power outlets.

With 16 PoE-enabled ports and a total PoE budget of up to 120W, this switch is ideal for powering compatible wireless access points, IP surveillance cameras, and IP phones in an efficient and cost-effective manner.

Key Features

High Power PoE+ Support

  • Up to 30W of PoE power per port

  • Total PoE power budget of up to 120W

  • Complies with IEEE 802.3af / 802.3at PoE+ standards

  • Power Detection (PD): only compatible PoE devices receive power

  • Automatic detection and protection of non-standard Ethernet devices for safe and reliable operation

Gigabit Connectivity

  • 16 × 10/100/1000Base-TX RJ-45 PoE ports with Auto-MDI/MDI-X

  • 2 × 10/100/1000Base-TX RJ-45 uplink ports (Ports 17–18)

  • Supports 10/100/1000 Mbps Ethernet applications

Plug-and-Play Design

  • No configuration required

  • Internal power supply for simplified deployment

Energy Efficient

  • Built-in Green Technology

  • Saves up to 83% power consumption

Compact and Durable

  • Compact 1U rack-mountable design

  • Suitable for WLAN access and commercial environments

Technical Specifications

Model: POE-SW1602G

Ports:

  • 16 × 10/100/1000Base-TX RJ-45 PoE ports

  • 2 × 10/100/1000Base-TX RJ-45 uplink ports

PoE Standard:

  • IEEE 802.3af

  • IEEE 802.3at

PoE Power Output:

  • 54V DC, Max. 30W per port

PoE Power Budget:

  • System: 150W

  • PoE: Max. 120W

PoE Power Supply Type:

  • Mode-A, End-Span

  • Pins: 1/2 (+), 3/6 (–)

LED Indicators:

  • Power (Green)

  • 10/100/1000 Link / Activity (Green)

Power Requirement:

  • 100–240V AC, 50–60 Hz

Power Consumption:

  • 150 Watts maximum

Dimensions (W × D × H):

  • 300 × 210 × 44 mm (1U height)

Weight:

  • 2.0 kg

Regulation Compliance:

  • FCC Part 15 Class A

  • CE

Standards Compliance:

  • IEEE 802.3 10BASE-T

  • IEEE 802.3u 100BASE-TX

  • IEEE 802.3ab 1000BASE-T

  • IEEE 802.3x Flow Control

  • IEEE 802.3af Power over Ethernet

  • IEEE 802.3at Power over Ethernet Plus
