Power Supply Adapter 12V | PS-12VDC-1A

Shipping calculated at checkout.

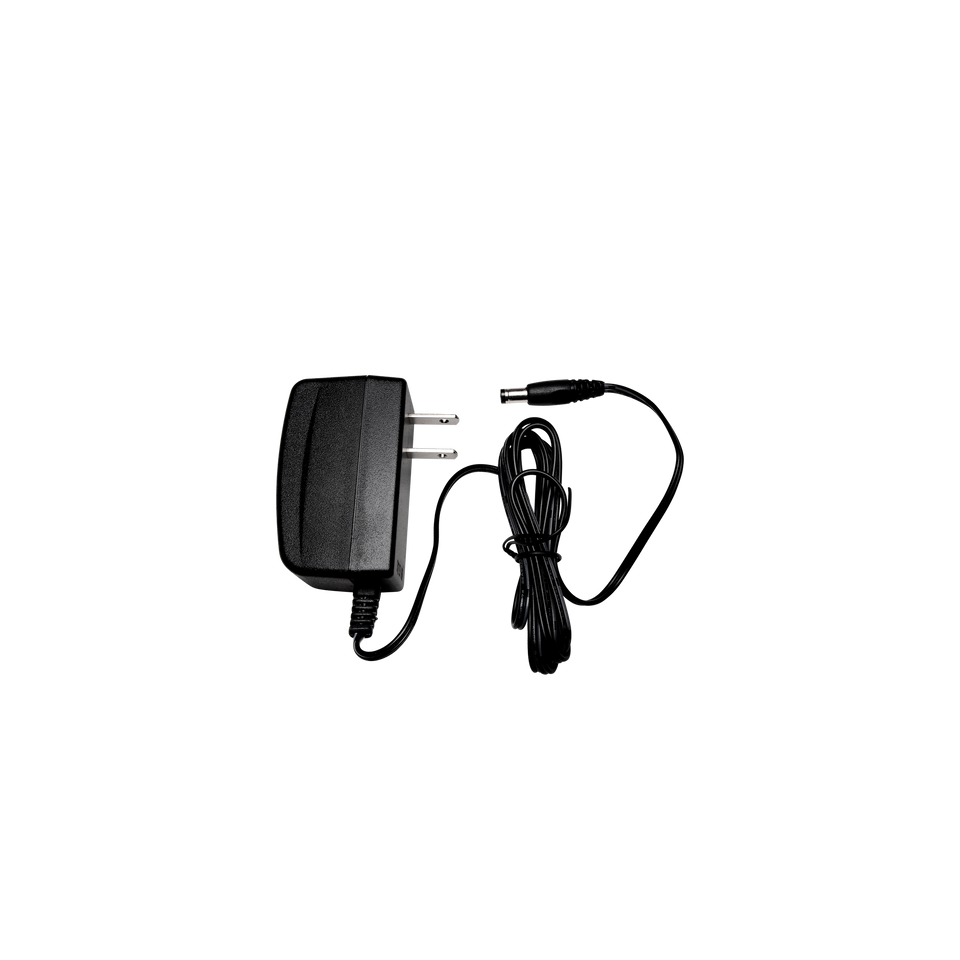

12V Power Supply Adapter

This adapter features an impressive minimum efficiency of 77.75% @ 115V ac input and output while at full load. Over-Current/Short Output Protection: The power supply will withstand a continuous output short. Normal operation will resume when the short is removed.

Lead Free & RoHS compliant for added safety. Note: Standard power supply tip sizes are (OD - Outside diameter, ID - Inside diameter): 5.5mm OD/2.5mm ID, 5.5mm OD/2.1mm ID This power supply comes with a 5.5mm OD / 2.1mm ID tip.


  • Input: 100-240V ~ 50/60Hz 0.5A
  • Output: 12V 1A (1000mA) / 12W
  • Output Voltage Range: 11.4V min. / 12.6V max.
  • Cord Length: 56in.
  • Connector Size: 5.5mm x 2.1mm (10mm long)
  • Minimum Efficiency: 77.75% at 115 VAC Input and Full Output Load

12V Power Supply Adapter Specifications:

Input Voltage 100-120V
Input Voltage Frequency 50Hz, 60Hz
Output Voltage 12 Volts
Output Voltage Range Minimum 11.4V, Maximum 12.6V
Output Current 1Amp
Minimum Efficiency 77.75% @ 115Vac input and output at full load
Connector 5.5mm
