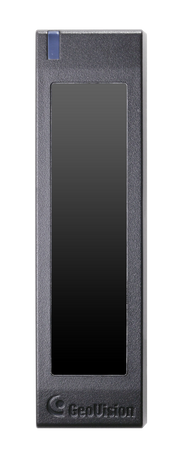

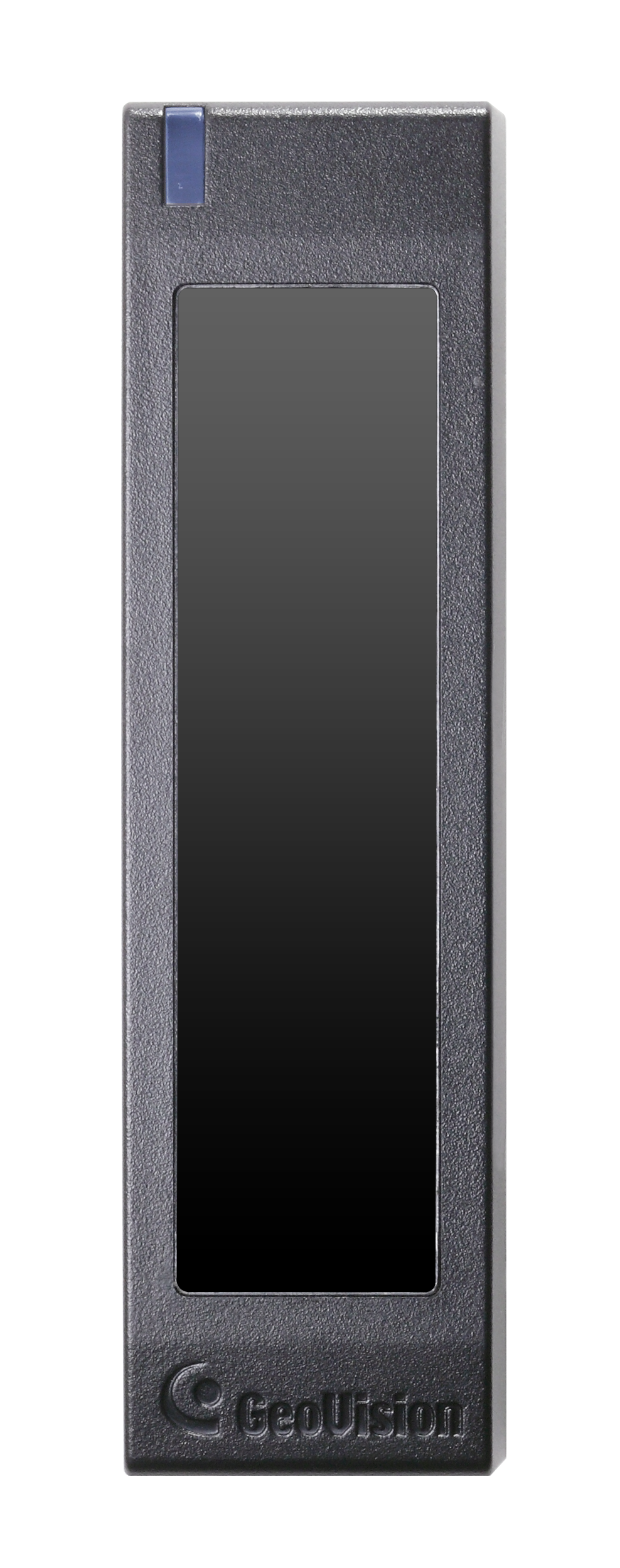

GeoVision GV-DFR1352 Door Frame Access Control Card Reader (13.56 MHz, IP66, Wiegand & RS-485)

$87.99
$87.99
Shipping calculated at checkout.

Description

The GeoVision GV-DFR1352 is a door frame card reader designed for secure access control systems. Operating at 13.56 MHz (ISO 14443A), it reads both GID and UID card formats. The unit features a weather-sealed, IP66-compliant housing rated for outdoor environments between -35°C and 66°C (-31°F to 150.8°F). Equipped with Wiegand 26/34-bit interfaces for third-party systems and an RS-485 interface for GeoVision controllers, it offers flexible installation options for secure entryways.

  • Outdoor Weatherproof Design: Features an IP66-compliant, weather-sealed housing rated to operate in temperatures ranging from -35°C to 66°C (-31°F to 150.8°F).

  • Dual Output Interfaces: Includes Wiegand 26- / 34-bit for third-party integration and RS-485 for long-distance setups up to 600 m (1968.5 ft) with GeoVision controllers.

  • 13.56 MHz Card Reading: Designed for 13.56 MHz ISO 14443A credentials, supporting both GID (GeoVision Identifier) and standard UID formats.

  • Slim Door Frame Form Factor: Measures 20.9 x 105.6 x 20.5 mm (0.8 x 4.2 x 0.8 in) to mount directly onto narrow door frames.

  • Status Indicators & Certifications: Built-in tri-color LED (Red, Green, Blue) and buzzer feedback, compliant with UL 294, CE, FCC, CUL, and RoHS standards.

  • Datasheet
